2.5" Gauge - Center bank w/ Flange (30"Hg - 0 psi) - Liquid-filled - CF1V-000E

  • 1938


Great quality, low cost pressure gauge offers 1.6% FSD accuracy. For use with air and non-corrosive fluids such as water and oil. Glycerin fill helps to reduce needle vibration during system operation.

Pressure Range:

  • 30"Hg - 0 psi (≈ -1 - 0 bar)

Mount & Connection:

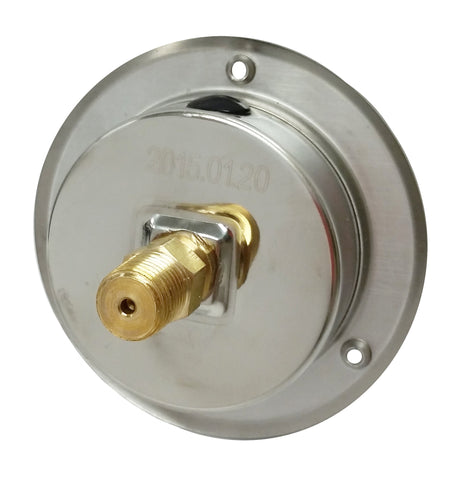

  • Center Back Mount with Panel Flange
  • 1/4" NPT Connection
  • Features:

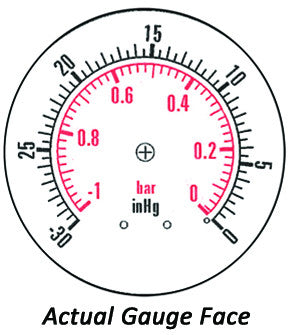

    • 2.5" Dial Face
    • Dual Scale PSI & Bar
    • 304 Stainless Steel Case and Bezel
    • Bronze Internals and Connection
    • Glycerin-filled
    • Polycarbonate Lens
    • Built-in Snubber
    • 1/4" NPT Connection
    • Temp. Range: -40°F to 180°F
