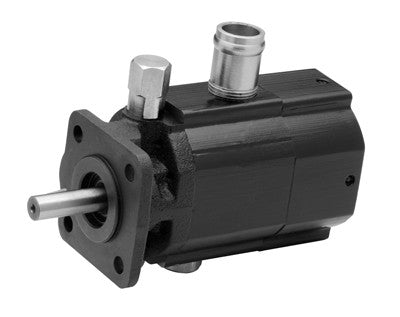

2-Stage Hydraulic Pump - 8 GPM - Hi Lo Pump - GP-CBN-080-P-C

2-Stage Hydraulic Pump - 8 GPM - Hi Lo Pump - GP-CBN-080-P-C

  • 19209


Dynamic brand 2-stage Hi/Lo pump. The pump is constructed of all cast iron.

Specifications:

  • Flow: 8 gpm
  • Displacement:
    • LO: .130 in³/rev (2.1 cm³/rev)
    • HI:  .385 in³/rev (6.3 cm³/rev)
  • Mounting Flange: 4-bolt
    • Shaft: 1/2" diameter keyed shaft
    • Rotation: Clockwise
    • Ports:
      • Inlet: 1" Tube
      • Outlet: 1/2" NPT
    • Speed: 3600 rpm
    • Pressure:
      • LO: 400/900 psi
      • HI:  3000 psi

    Recommended Working Conditions:

    • Filtration: 25 micron or better
    • Oil Temperature: -12° to 175°F (-25° to 80°C)
    • Oil Viscosity: 6 - 200 cSt
    • Ambient Temperature: -8° to 130°F (-22° to 55°C)
    • Inlet Pressure: 12 - 32 psi absolute
