Hydraulic Gear Pump - SAE "A" - .24 in³/rev - 5/8" Shaft - CCW - GP-F20-04-P-A

Hydraulic Gear Pump - SAE "A" - .24 in³/rev - 5/8" Shaft - CCW - GP-F20-04-P-A

  • 14820

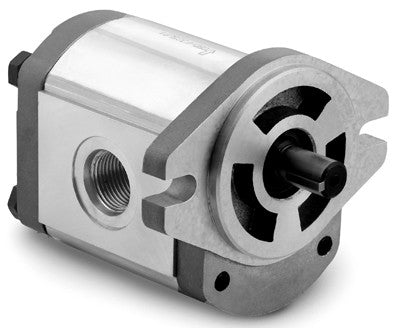

Dynamic brand high pressure hydraulic gear pump. The pump is constructed of an aluminum housing with cast iron flange and end plates.

Specifications:

  • Displacement: .24 in³/rev (4 cm³/rev)
  • Mounting Flange: 2-bolt, SAE "A"
  • Shaft: 5/8" diameter keyed shaft
  • Rotation: Counter-clockwise
  • Ports:
    • Inlet: SAE-12
    • Outlet: SAE-10
  • Speed:
    • Rated: 2000 rpm
    • Max: 3600 rpm
  • Pressure:
    • 3650 psi

Recommended Working Conditions:

  • Filtration: 25 micron or better
  • Oil Temperature: -12° to 175°F (-25° to 80°C)
  • Oil Viscosity: 6 - 200 cSt
  • Ambient Temperature: -8° to 130°F (-22° to 55°C)
  • Inlet Pressure: 12 - 32 psi absolute
