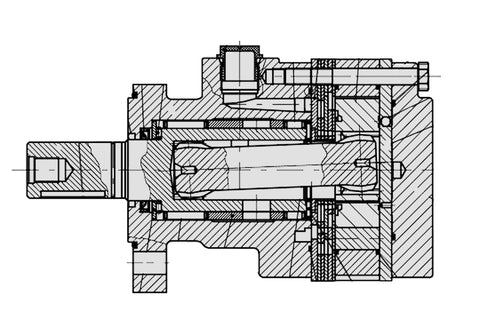

The BMER-2 series of motors (upgraded from BMER-1) offers a Rolortorc™ gear set with high speed distribution flow and high pressure. Tapered roller bearings on the output shaft permit high axial and radial forces offering a smooth operation during low pressure start up and high pressure operation.

Features:

• Shaft:  14-Tooth Spline
• Flange:  6-Hole Magneto Mount
• Ports:  7/8 -14 SAE
• Rotation: Counter-Clockwise

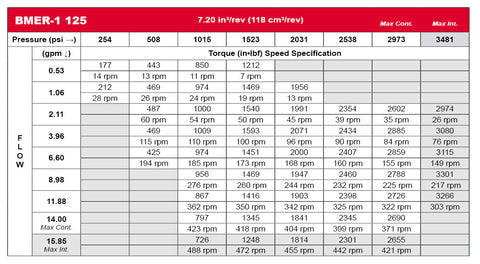

Technical Specifications for BMER-2-125-FS-FD1-S-R:

• Displacement: 7.20 in³/rev (118 cm³/rev)
• Max Speed: 360 rpm (cont) / 490 rpm (int)
• Max Torque: 2876 in•lbf (cont) / 3363 in•lbf (int)
• Max Differential: 2973 psi (cont) / 3481 psi (int)
• Max Flow: 11.88 gpm (cont) / 15.85 gpm (int)

Drop-In Replacement for:

• White Motors: 501-120-A31-23
• White Motors: 501-120-A51-23

Click here to view the manufacturer's catalog information on the BMER-2 Series of motors.

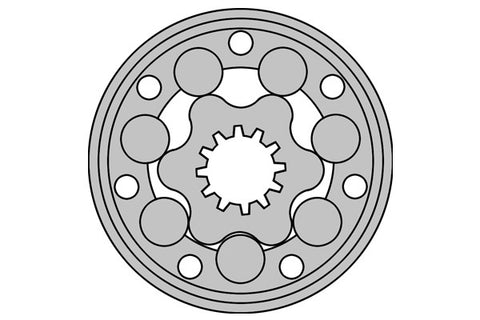

The Rolortorc™ gear set has rollers added to the outer ring which act as roller bearings, reducing friction and wear and increasing mechanical efficiency. This extends the operating life and provides better efficiency at continuous high pressures.

For optimal utilization of these motors, the following is recommended:

1. Normal oil operating temperature should be 70° t 150°F (20° to 60°C)
2. Maximum operating temperature should not exceed 190°F (90°C)
3. Filtration level per ISO Cleanliness Code level 18/3.
4. Minimum oil viscosity should be 100 SUS.
5. Motors should be operated at less than 30% of rated performance for the first hour of operation.
6. Simultaneous maximum torque and maximum speed is NOT recommended.
