LSHT Hydraulic Motor - 9.81 in³/rev - SAE "A" 2-bolt - 1" Woodruff - SAE Ports - BMRS-160-P4A11Y5

  • 21090
  • Save $ 2109

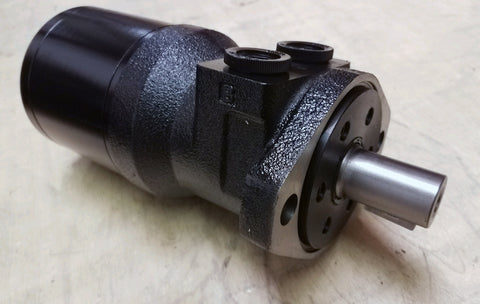

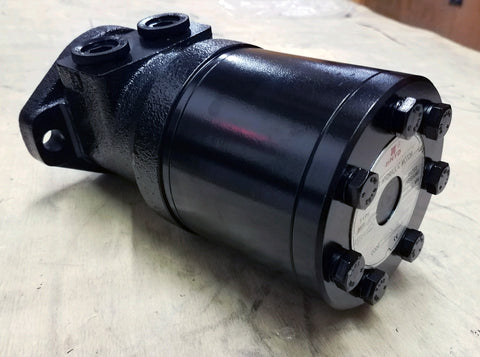

The ZiHyd BMRS-160-P4A11Y5 motor is equivilient to Dynamic's BMRS-160 H2-K-S motor. It is a compact, low noise, highly efficient, low-speed high-torque design, featuring a Rolortorc™ gear set which affords a a reliable smooth start up at low pressure.

NEW OLD STOCK. UNUSED IN BOX. SOLD AS IS. NO WARRANTY.

Features:

  • Shaft:  1" Woodruff Key
  • Flange:  SAE "A" 2-Bolt Mount
  • Ports:  7/8-14UNF (SAE-10)

Technical Specifications for BMRS-160-P4A11Y5:

  • Displacement: 9.81 in³/rev (160.8 cm³/rev)
  • Max Speed: 370 rpm (cont)
  • Max Torque: 2744 in•lbf (cont) / 3346 in•lbf (int)
  • Max Differential: 2031 psi (cont) / 2538 psi (int)
  • Max Flow: 15.85 gpm (cont)

Drop-In Replacement for:

  • Dynamic BMRS-160 H2-K-S


The Rolortorc gear set has rollers added to the outer ring which act as roller bearings, reducing friction and wear and increasing mechanical efficiency. This extends the operating life and provides better efficiency at continuous high pressures.

For optimal utilization of these motors, the following is recommended:

  1. Normal oil operating temperature should be 70° t 150°F (20° to 60°C)
  2. Maximum operating temperature should not exceed 190°F (90°C)
  3. Filtration level per ISO Cleanliness Code level 18/3.
  4. Minimum oil viscosity should be 100 SUS.
  5. Motors should be operated at less than 30% of rated performance for the first hour of operation.
  6. Simultaneous maximum torque and maximum speed is NOT recommended.
