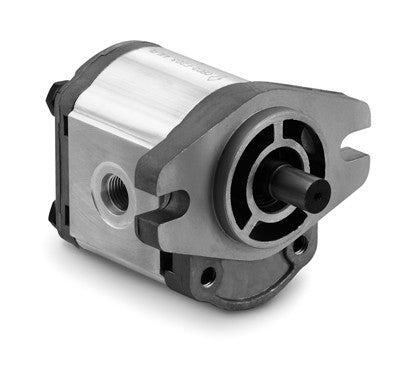

Hydraulic Gear Pump - SAE "AA" - .25 in³/rev - Counter Clockwise - GP-F10-41-P-A
Dynamic brand high pressure hydraulic gear pump. The pump is constructed of an aluminum housing with cast iron flange and end plates.
Specifications:
- Displacement: .25 in³/rev (41 cm³/rev)
- Mounting Flange: 2-bolt, SAE "AA"
- Shaft: 1/2" diameter shaft with 1/8" key
- Rotation: Counter-Clockwise
- Ports:
- Inlet: SAE-8
- Outlet: SAE-6
- Speed:
- Rated: 2000 rpm
- Max: 4000 rpm
- Pressure:
- 3625 psi
Recommended Working Conditions:
- Filtration: 25 micron or better
- Oil Temperature: -12° to 175°F (-25° to 80°C)
- Oil Viscosity: 6 - 200 cSt
- Ambient Temperature: -8° to 130°F (-22° to 55°C)
- Inlet Pressure: 12 - 32 psi absolute
