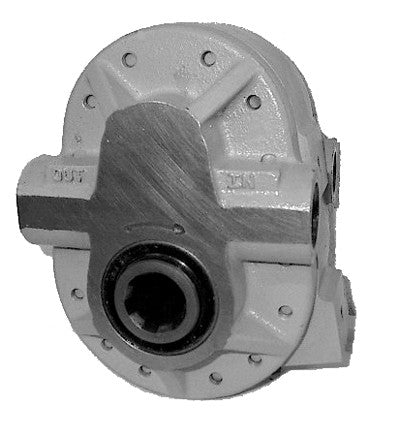

Dynamic brand Power Take Off (PTO) pump designed for PTO drive operation on tractors. Side and rear ported pumps are available. Constructed of cast iron end plates and an aluminum center section. Economical alternative to Prince brand PTO Pumps.

Specifications:

• Displacement: 3.41 in³/rev (56 cm³/rev)
• Drive: 6-Tooth Spline
• Side Ports:
• Inlet: SAE-16
• Outlet: SAE-12
• Speed:
  • Rated: 540 rpm
  • Max: 595 rpm
• Pressure: 2500 psi

Drop-in Replacement for:

• Prince: HC-PTO-7A

Recommended Working Conditions:

• Filtration: 25 micron or better
• Oil Temperature: -12° to 175°F (-25° to 80°C)
• Oil Viscosity: 6 - 200 cSt
• Ambient Temperature: -8° to 130°F (-22° to 55°C)
• Inlet Pressure: 12 - 32 psi absolute
